| Physical Conditions | |||
|---|---|---|---|

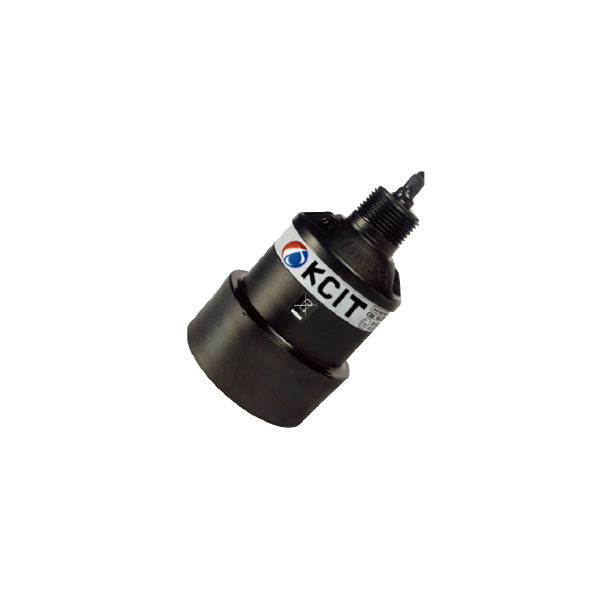

| Sensor Body Dimensions | Diameter 90mm x Height 140mm | Maximum Separation | Up to 1000m |
| Sensor Body Weight | Nominal 1kg | Connection Mounting | 1” BSP rear-mounted screw or provided adapter for 20mm, Pulsar installation bracket available (optional) |
| Sensor Body Material | Valox 357 | Mounting Angle | Installed at a 45° angle at the center of the path, without obstruction |
| Transducer Cable Extension | 2-core shielded cable | ||
| Environmental Conditions | |||
| Protection Rating | IP68 | Maximum and Minimum Temperature | -20°C ~ +60°C |
| Performance | |||
| Speed Range | 0.2 - 6m/s | Operating Range위 | Up to 3m height |
| Accuracy | ±1.5% or 0.05m/s or higher | Optimal Installation | Installed at a 45° angle along the flow, 1.5m from the sensor |
| Maximum Channel Width per Sensor | K-Band (ISM) | radar | <15 dBm |
| Beam Width | Up to 20° | Activation Time | Typically 4 seconds (12 hours warming period after last startup) |
| Certification | |||
| CE & Radar Certification | Listed in the manual’s conformity certificate | ATEX Certification | Ex II 1 G D, Ex ia IIC T4 Ga, Ex ia IIIC T135°C Da (Directive 2014/34/EU) |
| Programming | |||
| PC Programming | MicroFlow-I HART PC | PC settings and monitoring Software |
Compatible with Windows 7/8/10 |
| Programming Security | Password | Data Integrity | Non-volatile memory |
| Environmental Conditions | |||
| Communication | HART compatible, 4-20mA loop power | ||
| Power Supply | |||
| Operating Voltage | 10 - 28Vdc | ||
| Power Consumption |
|
||
