Core Solutions
| Measurement | |||
|---|---|---|---|

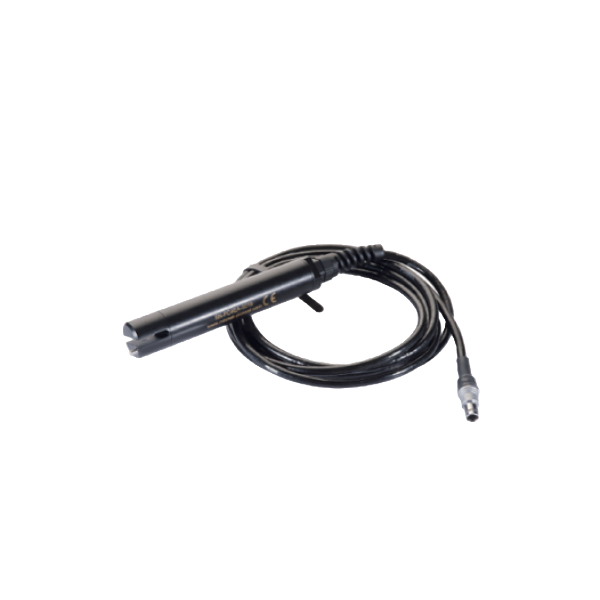

| Principle | 4-electrode conductivity sensor (2 graphic, 2 platinum) | Operating Temperature | 0°C ~ + 50°C |
| Measurement Range | 0–200.0 μS/cm | Temperature Sensor | NTC |
| Conductivity | 0–2000 μS/cm, 0.00 –20.00 mS/cm, 0.0 –200.0 mS/cm |
Measurement Temperature | -10°C ~ + 60°C |
| Resolution | 0.01 ~ 1 depending on the range | Signal Interface | Modbus RS-485 (standard) and SDI-12 (optional) |
| Accuracy | ±1% across the entire range | Maximum Update Time | < 1 s |
| Salinity Measurement Range | 5–60 g/Kg | Power Supply | DC 5~12V |
| TDS - KCl Measurement Range: 0–200.0 μS/cm to 0–133,000 ppm S/cm | 0–200.0 μ0–133 000 ppmS/cm | Current Consumption | Standby: 25 μA, Average RS485 (1 measurement/second): 6.3 mA Average SDI12 (1 measurement/second): 9.2 mA, Current Pulse: 500 mA |
| Temperature Response Time | <5s | ||
| Sensor | |||
| Size | Diameter: 25 mm / Length: 146 mm | ||
| Weight | Stainless Steel Version: 450g (Sensor + 3-meter cable) Titanium Version: 300g (Sensor + 3-meter cable) | ||
| Material | Stainless Steel 316L, New Product: Titanium | ||
| Maximum Pressure | 5 bars | ||
| Electrical Connection | 9-pin connector, polyurethane cover, standard wire or waterproof Fischer connector | ||
| Protection Rating | IP68 | ||
